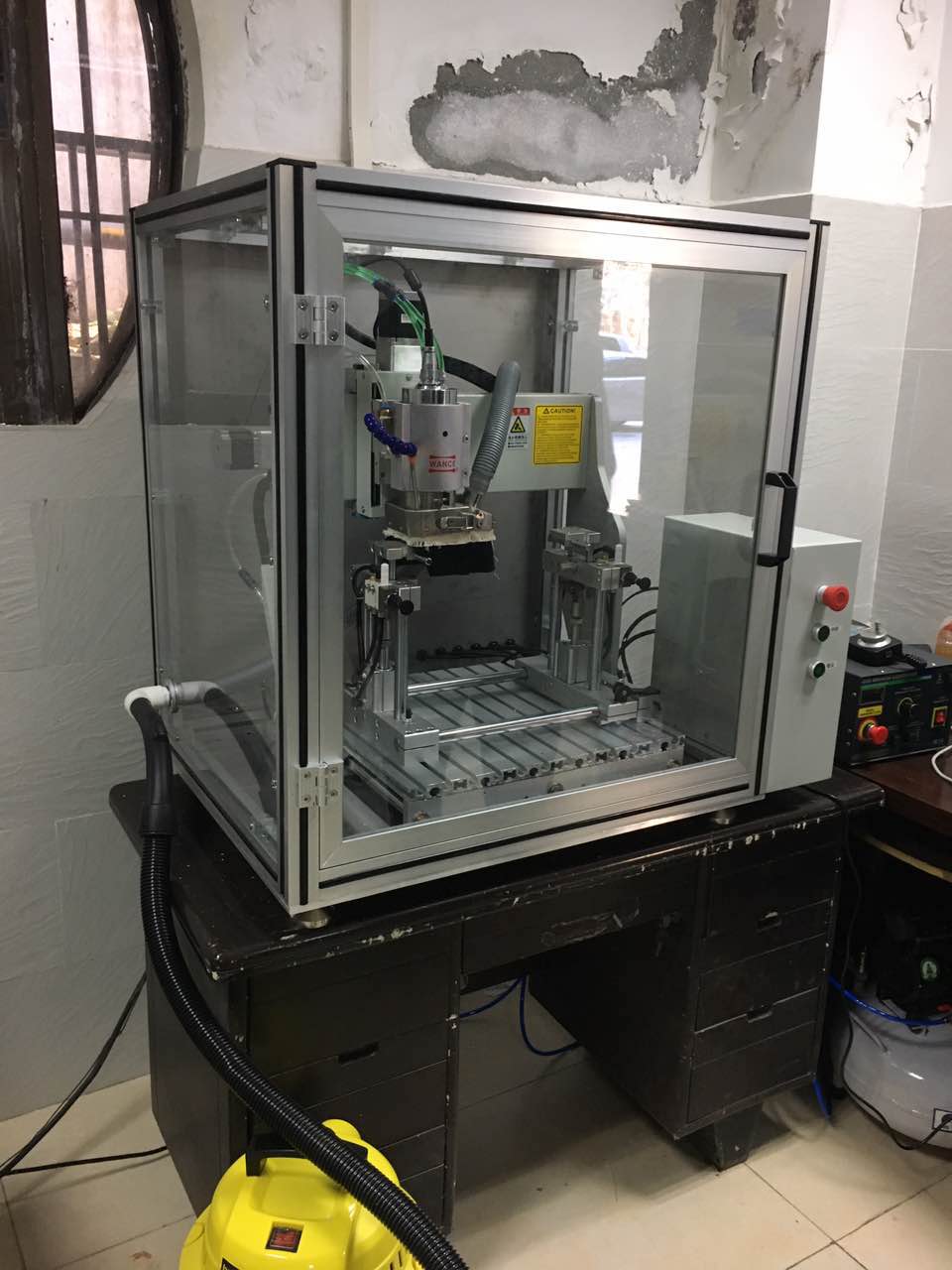

Automatic dumbbell specimen cutting machine

Description:
   DSM251A full-automatic dumbbell specimen making machine is mainly used for the preparation of dumbbell specimen, including nonmetallic plastic pipes ,sheets and aluminum, magnesium, its alloys etc.
Features:
 Z type bracket enlarge the Y-Axis moving range.
 Stable structure design, 15mm thickness aluminum plate #6061, portable as well as stable
 Two limit switches in every axis to make sure safety
 High torque 3A 57 stepping motor, maximum speed 2500rpm
 X, Y, Z axis have the protection shield separately to prevent the dust and waste into the ball screw
 Employ 1605 ball screw to strengthen the anti-impact function
 Employ the slide core of diameter 16mm to enlarge accuracy and speed.
 X, Y, Z axis base plates employ Integrated structure design to make sure the moving accuracy and return difference
 Employ X, Y, Z axis control to making sample from pipe directly
 Employ high speed variable frequency control motor to drive the drilling and milling cutter, make sure the sample surface smoothly after cutting
 Equip with pipe fixing clamp and sheet fixing clamp, installation easily
 Guide method using linear guide rail or round guide with ball screw and screw nut, the high accuracy of cutting sample
