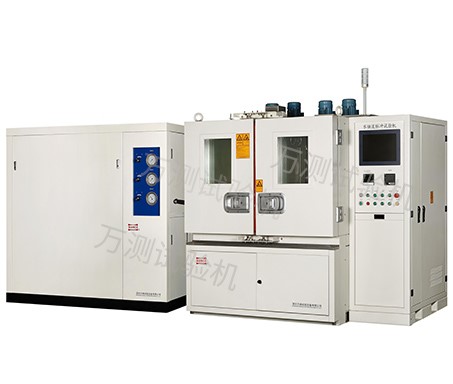

This testing machine is used for aviation hose, steel wire reinforced rubber hose, high pressure tubing and hose assemblies and other pulse testing requirements. The equipment simulates the actual working condition of the pipeline and its joint in the operating system, tests the pipeline joint according to relevant technical standards and requirements, and verifies the durability of the pipeline joint. It is widely used in aerospace enterprises, construction machinery industry, coal industry, product quality inspection institute, third-party testing center, scientific research institutions and other fields.
Features
1, servo control system automatic control; Before the start of the test, the large cycle automatically emptying; Pulse pressure, test times and pulse waveform can be set by computer.
2, with automatic stop protection function after the specimen is damaged, suitable for unguarded; The fixture is suitable for quick connection of hose assembly; The main components are imported parts, safe and reliable;
3, the internal structure is reasonable, the layout is beautiful, the use of non-welding pipeline connection, prevent running and leaking, and convenient maintenance; The system is compact in structure, easy to upgrade, easy to install, adjust and maintain
4, overtemperature, overpressure, leakage alarm stop, open the door automatic stop, automatic stop in case of failure and other safety protection functions; The interface dynamically displays the test data and draws the real-time time-pressure waveform;
5, using NI company data acquisition software for real-time analysis and storage, and can generate experimental report for printing.
Model | PTM457A |
Specimen type | Aviation hose, teflon pipe, pipe fittings |
Standards | HB6133-87, GJB 2837-97 |
Pressure range | 2 ~ 45MPa |
Rate of pressure rise | ≥150MPa |
Impulse frequency | 0.05 ~1.5Hz |
Waveform | Water hammer wave, sine wave |
Medium | Aviation hydraulic oil, silicone oil |
Medium temperature | RT+10~150℃,-40~150℃ |
Chamber temperature | -40~150℃ |
Specimen connection | Hose connection; 90° bend; 180° bend |
Specimen quantity | 1~6 |
