TSH-D Single space wedge-action grip

Test   type

          Slip & Tensile Strength

          Permanent Elongation & Tensile   Strength

          Static Tension Test

          Static Compression Test

Test   standards

          BS 8110: PART 1: 1997 3.12.8.16.2

          BS4482

          BS4483

          BS4449

          ASTM A 1034: 10.5, 10.7

          Others……….

Introduction

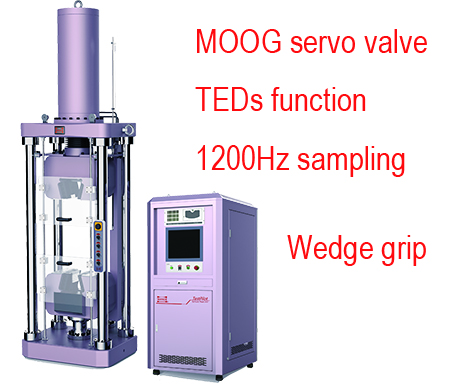

TSH series type D   servo-hydraulic universal testing machine is designed with up-mounted   actuator structure. Bidirectional differential cylinder provides   bidirectional control of tension and compression in one single space.

Clearance-free structure   and actuator up and down to adjust the test space offers easy operation and   high efficiency. This machine is mainly used for tensile test of metallic   materials. It provides closed loop control of constant force, constant   displacement and constant extension, smoothly switching among them.

Test results can be   automatically calculated and be able to printed and exported.

Load Frame   Configuration:

4 or 6 column,   servo-controlled hydraulic

Capacity:

300kN, 600kN, 1000kN,   2000kN

Test Space:

Dual zone (tension on   top, compression on bottom)

Typical specimens:

Fasteners, rebar, chain,   welds, castings

Frame

1.         Single zone design ensures all types   of tests finish in one space. Compact and reasonable design is ergonomic and   effectively reduces labor intensity.

2.         Upper actuator features excellent   axis alignment, good shock absorption and easy to adjust test space.

3.         Advanced wedge type hydraulic tensile   grips provide high gripping performance for high strength and high hardness   materials.

4.         Long travel double-acting cylinder   can accommodate different specimen size. One-body forging piston and rod, and   imported sealing components, ensure perfect sealing, high accuracy and   repeatability.

5.         Robust and high-accuracy guidance   protects cylinder from lateral force, improving the working life of sealing   components.

6.         “I” shape force transducer features   excellent linerity and stability with ultra measurement accuracy.

7.         Nemicon encoder provides with high   accuracy of displacement measurement and control.

8.         Imported MOOG servo valve offers fast   response and high-accuracy control, and easy to maintain.

9.         Equipped famous brand motor features   high efficiency, energy-saving, high shaft-torque, good performance, low   noise, low shaking, high reliability and easy to maintain.

Controller

·            WANCE   DTC-500 digital controller offers high speed and closed loop control of load,   displacement and extension.

·            Four-layer   PCB layout, anti-resistance, high reliability;

·            Connector   with locking function, strong and durable, not easy to fall off, the   interface layout is neat and reasonable, easy to plug and unplug;

·            6-channel   24 bit AD measurement channel;

·            Up   to 1200Hz sampling frequency;

·            Up   to 1200Hz closed loop control frequency;

·            20   bit resolution digital input;

·            3-channel   high-speed digital acquisition, which is used to collect orthogonal pulse   signals such as photoelectric encoder and grating ruler, with the highest   signal acquisition frequency up to 4MHZ;

·            Ethernet/USB   interface mode is supported, and the transmission rate is greatly increased   to support higher sampling frequency. Ethernet interface adopts special   high-performance Ethernet interface chip and hardware logic gate circuit to   realize complex TCP/IP protocol cluster, which has significant advantages   such as high reliability and good security;

·            TEDS   function: transducer self-identification system, interface features can be   set online by software, system structure is more reasonable;

·            It   has three closed-loop (force, extension and displacement) control functions,   realizing all-digital three closed-loop control of force, extension and   displacement. Each control loop can automatically switch between different   control rings, and realize smooth transition when switching between different   modes;

·            Perfect   limit protection, overload protection, emergency stop and other safety   protection functions.

·            Built-in   port for PC communication

·            Expandable   ports

·            Load   protection, over-current protection, over-voltage protection, over-speed   protect, and over-travel protection.

Software



·            Multi-language   software with built-in English, Chinese and Russian, and user can customize   their own translation freely

·            Pre-packaged   test methods to help you quickly and efficiently meet the requirements of   global test standards such as ASTM, ISO, DIN, EN, BS, and more

·            Intuitive   expression for easy programming of testing standards and testing process

·            Testing   report can be customized according to the requirement

·            User   authorization: The administrator can assign different functions for different   level users

Analysis can give   typical test results like Young’s modulus, Proof stress, Yield stress,   stress, strain, Tensile strength, Elongation at break, compressive strength,   bending strength, etc….

Model

TSH605

TSH106

TSH206

Type

Type D

Capacity (kN)

600

1000

2000

Calibration accuracy

Class 0.5

Force accuracy

Better than ±0.5%

Force range

1% ~ 100%FS

Extension range

1% ~ 100%FS

Extension accuracy

Better than ±0.5%

Extension resolution

1/500000 of max   extension

Actuator (piston) up   speed (mm/min)

230

190

190

Actuator (piston) down   speed (mm/min)

550

300

300

Force loading speed

0.02%-2% FS /s

Column number

4

4

4

Column spacing (test   space width) (mm)

550×370

650×400

770×470

Maximum tension space   (mm)

600

700

800

Maximum compression space   (mm)

400

480

520

Diameter of round   specimens (mm)

Φ10~ Φ55

Φ 12~ Φ 55

Φ15 ~ Φ70

Thickness of flat   specimens (mm)

2 ~ 30

2~40

10 ~ 70

Compression platens   (mm)

Φ150

200x200

Φ240

Actuator (piston)   stroke (mm)

580

680

780

Frame dimension (LxWxH)   (mm)

800×650×2960

940×720×3290

1180×880×3960

Hydraulic Power Unit   dimension (LxWxH) (mm)

900×750×1700

900×750×1700

900×980×1700

Oil tank capacity   (Liter)

150

150

150

Anti-wear hydraulic oil

46#

Power requirement

Three-phase, 5-line, 380   VAC, 50Hz

Power consumption (kW)

5

9

12.5

Frame weight (kg)

2500+500

4500+500

9500+700


TBD
