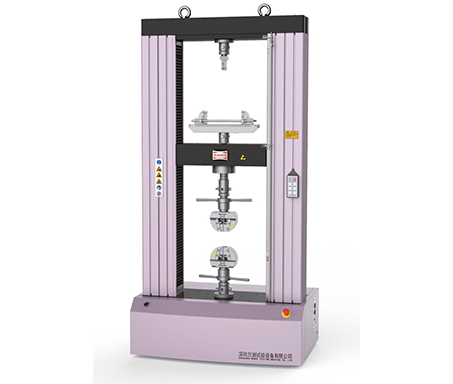

ETM-D dual column floor standing (50~300kN)

The ETM type D Series addresses the needs of standardized and routine testing, providing the user high quality at the most affordable price. The dual column testing systems with rugged structure are suited for tension and/or compression applications with load range requirements from 50kN to 300kN. They are typically used for quality control and production testing.

Typical specimens: Metals, building components, large fasteners, composites, wood products

Environmental simulation: Environmental chamber and high temperature furnace

New Features:

·          Robust guidance columns increase lateral stiffness and ensure linear crosshead travel. This results in accurate crosshead alignment thus reducing variability in measurement data and producing better overall accuracy

·          Non-clutched drives, rated for full speed at maximum force

·          Compact design saves lab space

·          Wider test width

High Quality at affordable price

·          Pre-loaded ball screws and heavy duty bearings assure long life with zero backlash as well as linear low force and through zero performance. The result is accurate and repeatable measurements that truly represent the specimen characteristics rather than load frame deficiencies

·          Fully-protected lead screw covers provide longer life and greater operator protection

·          Easy-to-clean aluminum column covers with chamfered corners to facilitate access to the test area. T-slots are built in for simple, convenient attachment and positioning of testing accessories

·          High-speed, low vibration, world-class, maintenance-free, imported AC servo motor and servo controller

·          Photoelectrical encoder built in servo motor system is for position measurement of crosshead

·          Built-in bidirectional load cell is assembled in the middle crosshead to prevent any collisions and simple to perform compression or tension tests

·          Dual action over-travel limits on all frames provide the highest level of safety and meet all international standards

·          Remote control keypad facilitates test operation

·          Full one-year warranty on parts and labor

·         Free software upgrading

Machine dimension: ETM504D ETM105D

Test space

Frame type

Width x Depth x Height

A x B x C (mm)

Crosshead travel

H (mm)

Test width

W (mm)

Single

Standard

1145×765×2340

1150

600

Extended frame

1145×765×2640

1450

600

Dual   space

Upper   compression lower tension

Standard

1145×765×2340

1050

600

Extended frame

1145×765×2640

1350

600

Dual   space

Upper   tension lower compression

Standard

1145×765×2340

1150

600

Extended frame

1145×765×2640

1450

600

Machine dimension: ETM205D ETM305D

Test space

Frame type

Width x Depth x Height

A x B x C (mm)

Crosshead travel

H (mm)

Test width

W (mm)

Single

Standard

1210×770×2600

1200

650

Extended frame

1210×770×2900

1500

650

Dual   space

Upper   compression lower tension

Standard

1210×770×2600

1150

650

Extended frame

1210×770×2900

1450

650

Dual   space

Upper   tension lower compression

Standard

1210×770×2600

1150

650

Extended frame

1210×770×2900

1450

650

 Specifications:

Model

ETM504

ETM105

ETM205

ETM305

Type

Type D

Capacity   (kN)

50

100

200

300

Calibration   standard

ISO 7500, Class 1 / Class 0.5

Force   range

0.2%   ~ 100%FS / 0.4   ~ 100%FS

Force   accuracy

±1.0% / ±0.5% of reading

Force   resolution

1/500000FS

Position   accuracy

±0.50% of reading

Position   resolution (μm)

0.04

Crosshead   speed (mm/min)

0.005 ~ 1000

0.005 ~ 500

Crosshead   speed accuracy

within ±1% / ±0.5% of set speed

Power   requirement

One-phase, 220±10% VAC

50/60Hz

Three-phase, 380±10% VAC, 50/60Hz

Power   consumption

2kW

5kW

Weight   (kg)

1200

1500

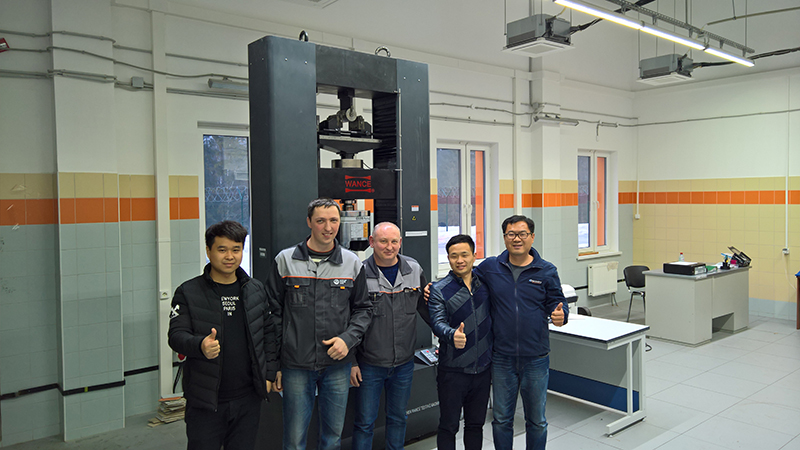

IZOTECH (Russia)

ETM605D with automatic extensometer

IZOTECH ETM605D.jpg


youtubideo www.youtube.com/embed/p0gAC7rx9ZY?si=oWmuFWo63dg4UDbR
