HUT-D single space wedge-action grip

Description Applications Contact us

Test type: Slip & Tensile Strength, Permanent Elongation & Tensile Strength, Static Tension Test, Static Compression Test

Test standards; BS 8110: PART 1: 1997 3.12.8.16.2, BS4482, BS4483, BS4449, ASTM A 1034: 10.5, 10.7, Others……….

Description

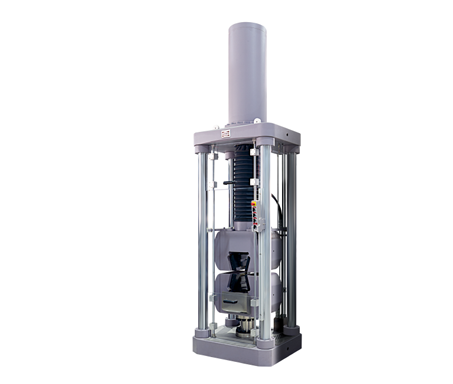

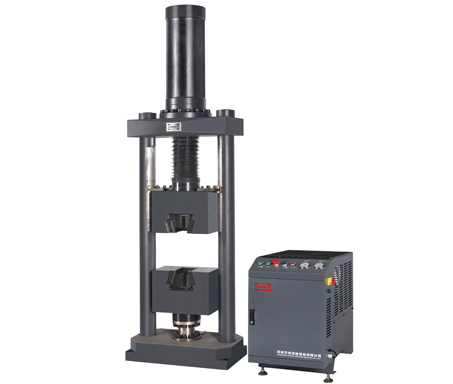

HUT series type D servo-hydraulic universal testing machine is designed with up-mounted actuator structure. Bidirectional differential cylinder provides bidirectional control of tension and compression in one single space.

Clearance-free structure and actuator up and down to adjust the test space offers easy operation and high efficiency. This machine is mainly used for tensile test of metallic materials. It provides closed loop control of constant force, constant displacement and constant extension, smoothly switching among them.

Test results can be automatically calculated and be able to printed and exported.

Load Frame Configuration: 4 columns, servo-controlled hydraulic

Capacity: 600kN, 1000kN, 2000kN

Test Space: Single zone

Typical specimens: Fasteners, rebar, chain, welds, castings

Specifications:

Model	HUT305	HUT605	HUT106	HUT206
Type	Type D
Capacity (kN)	300	600	1000	2000
Calibration accuracy	Class 1 / Class 0.5
Force accuracy	Better than ±1%/±0.5%
Force range	1% ~ 100%FS
Extension range	1% ~ 100%FS
Extension accuracy	Better than ±1%/±0.5%
Extension resolution	1/500000 of max extension
Actuator (piston) up speed (mm/min)	340	280	240	195
Actuator (piston) down speed (mm/min)	1000	660	375	310
Force loading speed	0.02%-2% FS /s
Column number	2	2	4	4
Column spacing (test space width) (mm)	500	475	585×365	770×470
Maximum tension space (mm)	600	595	700	800
Maximum compression space (mm)	390	395	485	525
Diameter of round specimens (mm)	Φ10 ~ Φ32	Φ10 ~ Φ40	Φ 15~ Φ 55	Φ15 ~ Φ70
Thickness of flat specimens (mm)	2 ~ 25	2 ~ 30	2~40	10 ~ 70
Compression platens (mm)	Φ120	Φ150	200x200	Φ240
Actuator (piston) stroke (mm)	600	580	680	780
Frame dimension (LxWxH) (mm)	720x550x2835	740x600x2890	870x650x3340	1200x900x3930
Hydraulic Power Unit dimension (LxWxH) (mm)	600x880×925	600×880×925	870x1080x1100	860×1350x1250
Oil tank capacity (Liter)	90	90	210	380
Anti-wear hydraulic oil	46#
Power requirement	Three-phase, 5-line, 380 VAC, 50Hz
Power consumption (kW)	5	5	8.5	12
Frame weight (kg)	2000+400	2500+400	4500+700	9800+1200

This machine is suitable for tension, compression, and bending tests of Fasteners, rebar, chain, welds, castings.
