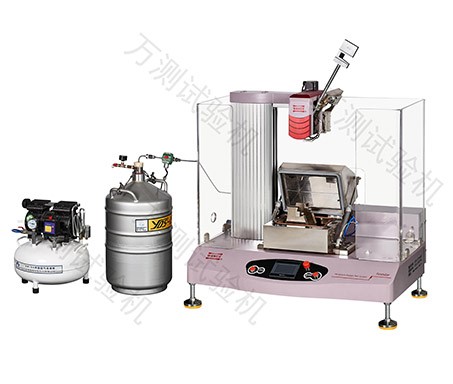

This series plastic pendulum impact testing machine is an instrument for testing the impact resistance of plastics, nylon, rubber, wood, glass reinforced plastics, composite plastic pipes, electrical insulation materials and other non-metallic materials under low temperature or normal temperature environment of dynamic load. It has touch screen type and compuerized type. This machine is easy to operate, it can automatically raise the pendulum, automatically open the cover, automatically heat preservation timing, automatic impact, automatic brake, automatic recording of experimental data and other functions. It can meet the environmental impact test at room temperature ~ -70℃. It can do simple support beam test, and can do cantilever beam test, support adjustment and replacement is convenient, strong applicability, is the hard plastic manufacturers, plastic pipe manufacturers, quality inspection units, scientific research institute and other essential testing equipment.

Parameters

1.         Capacity

Ø  Charpy for plastics: 7.5J, 15J, 25J, 50J

Ø  Charpy for plastic pipe: 15J, 50J

Ø  Izod: 5.5J, 11J, 22J

Ø  Tensile impact: 7.5J, 15J, 25J

2.         Angle of striking: 30°~150°

3.         Angle resolution: 0.045°

4.         Charpy Test for plastics (ISO 179, ASTM D6110)

Ø  The max velocity of striking: 3.8m/s

Ø  The max distance from the axis of support to the center of percussion: 395mm

Ø  Span: 40mm, 60mm,62mm,70mm (can be adjusted by span block)

Ø  Specimen dimension (LxWxH):

  80mmx10mmx4mm, 50mmx6mmx4mm, 120mmx15mmx10mm

5.         Charpy Test for plastic pipe (ISO 9854.1)

Ø  Velocity of striking: 3.8m/

Ø  Distance from the axis of support to the center of percussion: 395mm

Ø  Span: 40mm, 70mm (can be adjusted by span block)

Ø  Specimen dimension (mm)

 6. Izod test (ISO 180, ASTM D256)

Ø  Velocity of striking: 3.5m/s

Ø  Distance from the axis of support to the center of percussion: 335mm

Ø  Striking knife center to vice upper surface: 22±0.2mm

Ø  Specimen dimension (LxWxH): 80x10x4mm, 63.5x12.7x12.7mm

63.5x12.7x6.4mm, 63.5x12.7x3.2mm

7. Tensile impact test (ASTM D1822, ISO 8256)

Ø  The max velocity of striking: 3.8m/s

Ø  Distance from the axis of support to the center of percussion: 395mm

Ø  Crosshead mass: 60±1g, 120±1g

8. Power supply: 220V±10%   50Hz   500W

9. Machine dimension (LxWxH): 1000mm×300mm×760mm

10. Weight: 300kg
