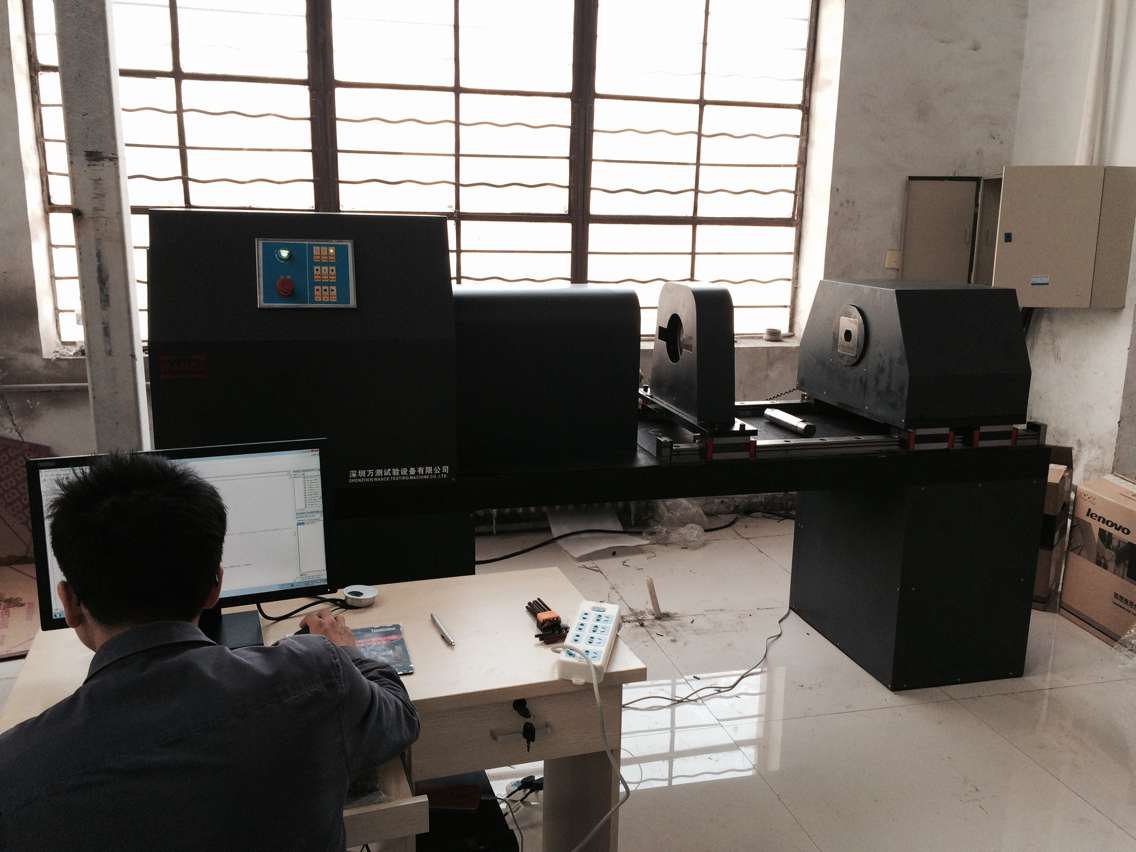

This series torsion testing machine is specifically designed for bolt and nut torsion test according to ISO16047. It can determine torque coefficient K, coefficient of total friction, coefficient of friction between threads, coefficient of friction between bearing surfaces and other parameters.
1. Features
l Torque is measured by high-accuracy and high-stability transducer
l AC servo motor driver offers infinitely variable speed transmission
l It can apply positive and negative torque on specimen
l Over-load protection
l Emergency stop button
l Automatic removing initial clamping force
l Automatic calculation after test
l Angle measurement can automatically recognize upper and lower yield point of materials
l DSP based control system, integrating measurement with control
l Fully closed-loop control of load, displacement and extension
l Professional test software allows data analysis and graph plot, report print and export.
l Live display of torque, angle and speed
2. Standards:
ISO16047, BS EN 14399-2, GB/T 1231, GB/T 3623
3. Parameters
Model | ETT203B |
Accuracy | Class 1 |
Maximum torque (Nm) | 2000 |
Torque measurement range (Nm) | 20-2000 |
Torque accuracy | ±1% |
Maximum compression force (kN) | 600 |
Compression force accuracy | ±1% |
Toque/force resolution | 1/500000FS |
Torsion speed (°/min) | 6-3600 |
Torsion speed accuracy | ±1.0% of setting |
Screw | M8，M12，M14，M16，M20，M22，M24，M27, M30 |
Power consumption (kW) | 3 |
Dimension (mm) | 2100 x600 x 1200 |
Weight (kg) | 460 |
