Application:
l Impact on metals, Charpy and Izod, both non-instrumented and instrumented
l Wedge impact test of adhesive bonds
l Brugger method test of toothed gear wheels
l Servo motor driven pendulum can stop at any position, realizing different angle/energy impact test for R&D use
l Equipped with cooling system, I can perform low temperature test down to -180℃
Standards
ASTM E23, ASTM E1820, ASTM E2298, AS 1544, ISO 148, EN10045, ISO 14556, ZF 15-53, ISO 11343, JIS Z 2242, JIS B 7722, GOST 9454

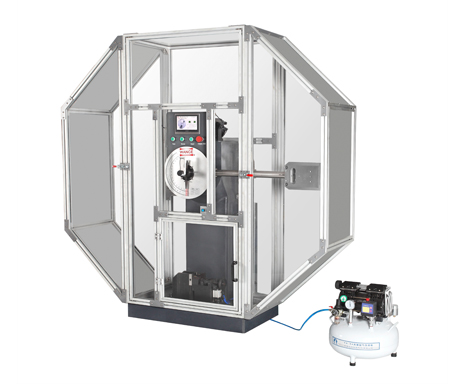

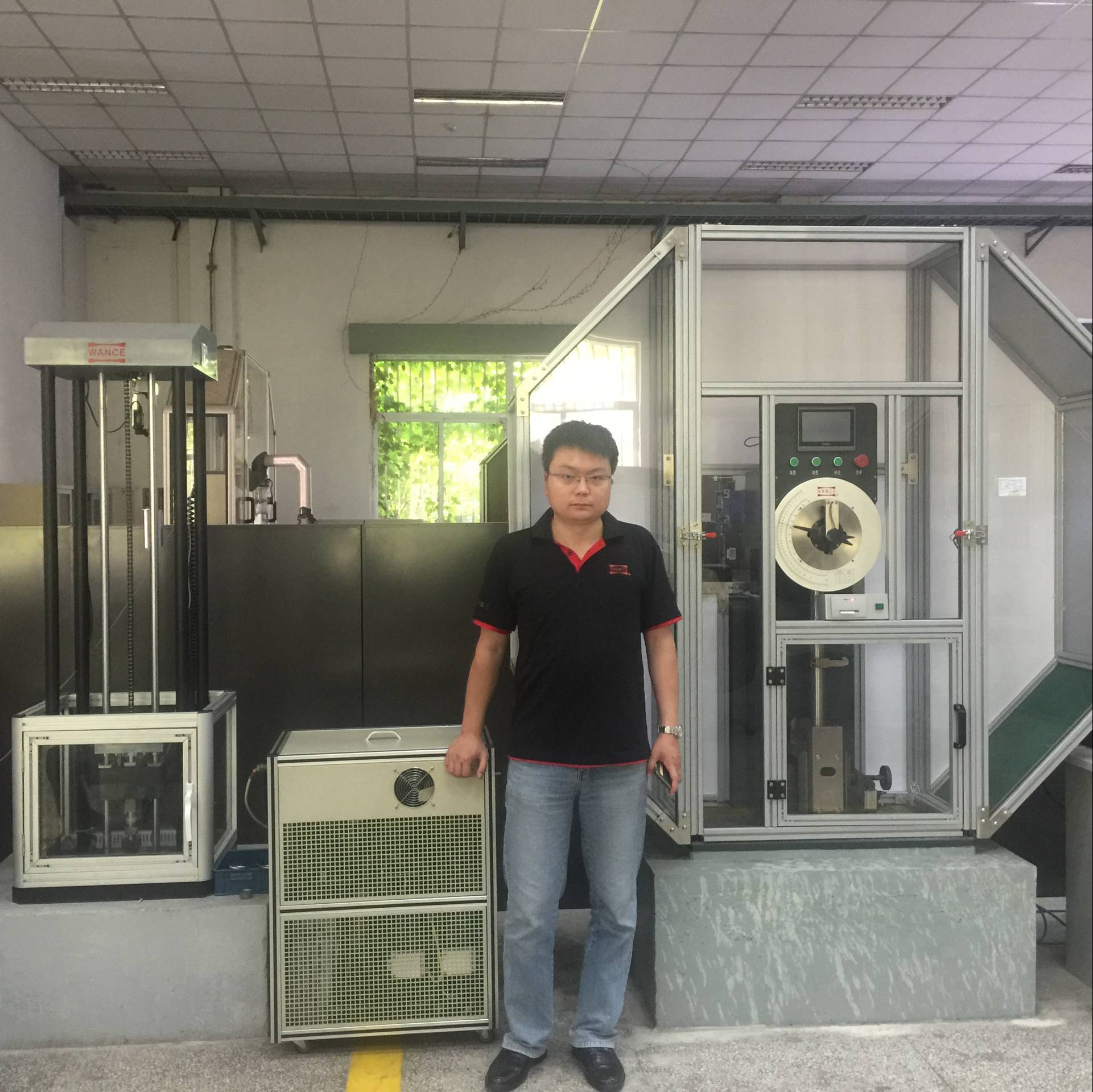

Machine structure
The basic model consists of a heavy solid steel base on which the specimen holder (anvil) and a heavy-duty cast steel upright are mounted. The machine is constructed with main frame, driving system, pendulum lock/release system, angle encoder, display, protection shield and other accessories.
Pendulum
3D CAD software provides advanced design and analysis, ensuring accurate striking point and pendulum moment. High stiffness pendulum rod ensures no vibration after impact.
Customer can change striking knife according to test standard requirements, such as R2 for ISO/GB standard, R8 for ASTM, or R2/R8 instrumented knife, or Izod knife complying with ASTM E23.
300J and 450J pendulum is a combined design. It consists of 300J pendulum, and two counter weights. It can reach 450J when assembling 300J pendulum head with two counter weights. This flexible design facilitates switching impact energy, simple and high efficiency.
Charpy support & anvil
Standard configured Charpy support and anvil comply with ISO148, EN10045, and ASTM E23.
Smart design of anvil is easy to assemble, simplifying maintenance.
Optional multi-purpose fixture (patent pending)
Wance patented design of multiple purpose fixture is able to perform Charpy, Izod and tensile impact test without changing the specimen fixture, greatly reducing the labor and improving efficiency.
There are two types of fixture:
1. Manual type: manually center the Charpy specimen, manually clamp the Izod specimen.
2. Pneumatic type: pneumatic cylinder is used to center Charpy specimen, and to clamp Izod specimen.
Pendulum holding & releasing mechanism |
Driving system:
This series adapts standard double speed reducer instead of old complicated driving system, featuring simple structure, easy repair, and high durability and free of maintenance.
Angle measurement system
Japanese made NEMICON high precision optical encoder is used for angle measurement, angle resolution can reach 0.025° to ensure high accuracy of impact energy.
Safety system:
This series of machine has fully closed protection shield to protect operator against specimen splitting during test, and to deny any access to the inside during test. Built-in door interlock further ensures operator safety. The protection shield is constructed with aluminum alloy profile for frame and fiber glass for easy observation. Split-type door design is simple to repair and change pendulum.
Energy display system
Three types of energy display are available:
Ø Analogue: simple and direct to read impact energy
Ø Wide view touch screen
Ø Computer software
Instrumented impact system – IIS105
Instrumented impact system consists of striking knife with force transducer, data sampling card, signal conditioner and professional test software. Instantaneous force signal from transducer assembled on the striker is transferred to and enlarged by high speed signal conditioner. Enlarged signal is A/D converted by high speed data sampling card, then transferred to computer for storage and analysis. After calculating and analyzing original force vs. displacement curve, more characteristic parameters could be determined, furthermore specimen deformation and fracture property could be precisely judged.
Specifications
Model | PIT452G PIT752H |
Force transducer | 30kN, 50kN |
A/D sampling resolution | 16bits |
Maximum sampling frequency | 1.25MHz |
Frequency band width | 500kHz |
Power supply | AC220V±10%, 50Hz, 100W |
Instrument data analysis system - Software
· Automatic curve fitting of force vs. displacements
· Automatically determine Fgy, Fm, Fiu, Fa, and other characteristic parameter, further determine after calculation Sgy, Sm, Siu, Sa, St, Wm, Wiu, Wa, Wt and others.
· Fully automatic data processing permits to get test results and report after each test immediately.
· Curve and raw data can be exported
Specifications:
Name | Description | |
Maximum impact energy | 450J (300J, 150J) | |
Angle resolution | 0.025° | |
Distance from the axis of support to the center of percussion | 750mm | |
Velocity of striking | 5.24m/s | |
Angle of striking | 30°~150°, adjustable | |
Anvil | Span | 40mm |
Radius of curvature of supports | 1mm | |
Angle of taper of supports | 11°±1° | |
Striking knife | Radius of striking edge | 2mm(R2) or 8mm(R8) |
Angle of striking tip | 30° | |
Thickness of striker | 16mm | |
Dimension (with protection shield) | 1960mm×680mm×2000mm | |
Weight | 800kg | |
Power supply | 1-phase, 220±10%VAC, 50Hz | |
Power consumption | 800W | |
Standard configurations:
Name | Description | Model | ||
PIT452G-2 | PIT452G-3 | PIT452G-4 | ||
Framework | Frame | √ | √ | √ |
Pendulum holding and releasing mechanism | √ | √ | √ | |
Driving system | √ | √ | √ | |
Angle measurement system | √ | √ | √ | |
SIMENS PLC control | √ | √ | √ | |
Analogue display | √ | √ | √ | |
Touch screen | √ | √ | √ | |
Protection shield | √ | √ | √ | |
Servo motor | √ | √ | √ | |
Charpy support & anvil | Only for Charpy, comply with ISO and ASTM | √ | √ | √ |
Instrumented impact system (model: IIS105) | Data sampling card Data Conditioner Instrumented test software | √ | ||
Software | √ | √ | ||
Accessories | Span adjusting device specimen center alignment device inside-hexagonal spanner foundation bolts wedge block | √ | √ | √ |
Optional multi-purpose fixture
Name | Specifications |
Manual multi-purpose fixture | Manually clamp Charpy or Izod specimen |
Pneumatic multi-purpose fixture | Pneumatically clamp Charpy or Izod specimen |
Air pump (YH-04) | Air capacity: >60L/min Air pressure: 0.45~0.75MPa |
Optional pendulums
Name | Capacity | Compatible Model |
Charpy pendulum (Striker knife:ISO148 R2, or ASTM E23 R8) | 150J | PIT452G-2, PIT452G-3 |
300J | ||
450J | ||
Please specify ISO striker or ASTM striker | ||
Remark: 450J pendulum is assembled by 300J pendulum with two counter weight.
Optional instrumented pendulums
Name | Capacity | Compatible Model |
Instrumented Charpy pendulum (striking knife with 30kN force transducer: ISO148 R2, or ASTM E23 R8) | 150J | PIT452G-4 |
300J | ||
450J | ||
Please specify ISO striker or ASTM striker | ||
Remark: 450J pendulum is assembled by 300J pendulum with two counter weight.
Optional notch broacher
Name | MODEL | Specifications |
Notch making machine | NSM201B | V2 and U5 notch Comply with ISO148 and ASTM E23 |
Optional cooling system
Name | Model | Description | Accessories |
Automatic cooling and feeding system | LTC601A-2 | -60℃~ambient Cooling method: compressor | Specimen auto-feeding system Low temperature chamber Compressor Air pump |
LTC102B-2 | -100℃~ambient Cooling method: liquid nitrogen | Specimen auto-feeding system Low temperature chamber Liquid nitrogen cylinder Air pump | |
LTC182B-2 | -180℃~ambient Cooling method: liquid nitrogen | ||
Manual cooling system | LTC601A-1 | -60℃~ambient Cooling method: compressor | Low temperature chamber Compressor |
LTC801A-1 | -80℃~ambient Cooling method: compressor | Low temperature chamber Compressor | |
LTC102B-1 | -100℃~ambient Cooling method: liquid nitrogen | Low temperature chamber Liquid nitrogen cylinder | |
LTC182B-1 | -180℃~ambient Cooling method: liquid nitrogen |
