Notch cuttnig for plastics

Description Applications Contact us

Functions:

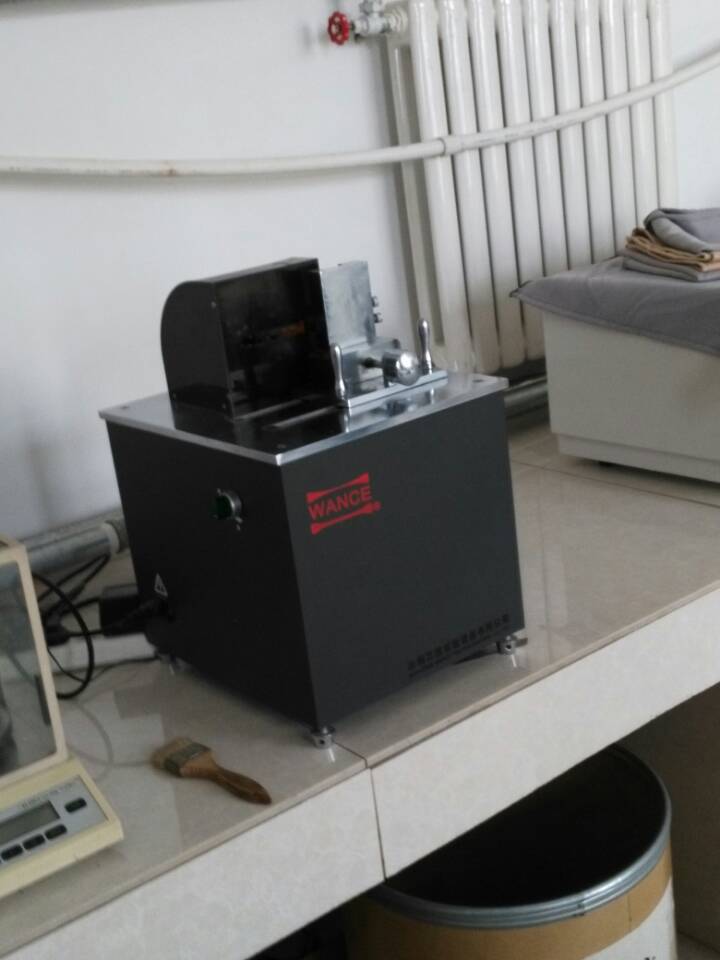

This machine is used for notching specimen of Charpy and Izod tests.

Standards:

GB/T1043, GB/T 1843, ISO 179, ISO 180, ASTM D256

Parameters:

Ø Motor speed:n=1440r/min

Ø Machine dimension (length x width x height): 326×376×460mm

Ø Power requirements: Single-phase, 220V±10%,5A, 50Hz

Ø Weight: 30kg

Ø Specimen maximum thickness: 25mm

Standard accessories:

1. Main machine: 1 set

2. Cutting tooth: 1 set

3. Fixture: 1 set

Cutting tooth:

Ø Type A comply with GB/T1043, GB/T 1843, ISO 179, ISO 180, ASTM D256

Ø Type B, Comply with GB/T1043, GB/T 1843, ISO 179, ISO 180

Ø Type C, comply with GB/T1043, ISO 179
