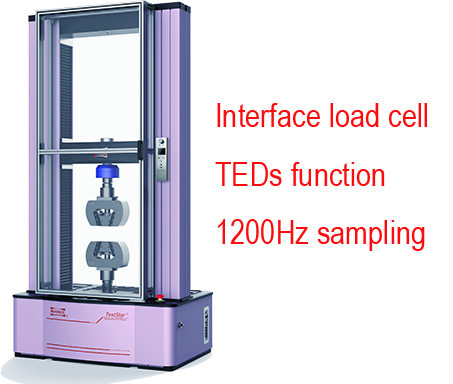

TSE-D series (100kN~2500kN)

Description Applications Contact us

This series of universal tensile testing machine addresses the needs of standardized and routine testing, providing the user high quality at the most affordable price. The dual column testing systems with rugged structure are suited for tension and/or compression applications. They are typically used for quality control and production testing.

Typical specimens: Metals, building components, large fasteners, composites, wood products

Environmental simulation: Environmental chamber and high temperature furnace

Model	TSE254D TSE504D TSE105D	TSE255D	TSE605D	TSE106D	TSE206D
Capacity (kN)	25kN 50kN 100kN	250kN	600kN	1000kN	2000kN
Accuracy	0.5%
Force measurement range	0.4%-100%FS			1%~100%
Force accuracy	±0.50% of reading
Force resolution	1/500000FS
Extension accuracy	±0.50% of reading
Force resolution	1/500000FS
Position accuracy	±0.50% of reading
Position resolution (μm)	0.04	0.04	0.02	0.02	0.013
Crosshead speed (mm/min)	0.005~1000	0.005~500	0.005~250	0.005~250	0.005~200
Crosshead speed accuracy	±0.5% of setting
Power requirement	Single-phase, 220V±10% VAC 50/60Hz	Three-phase 380±10% VAC 50/60Hz
Power consumption (kW)	2	5	7	13	22
Weight (kg)	1200	1500	4500	8000	14000
Dimension (mm)	1150×800×2350	1220×890×2465	1250×758×3040	1500×820×3540	2036×1070×4220
