50kN with chamber and video extensometer

Description Applications Contact us

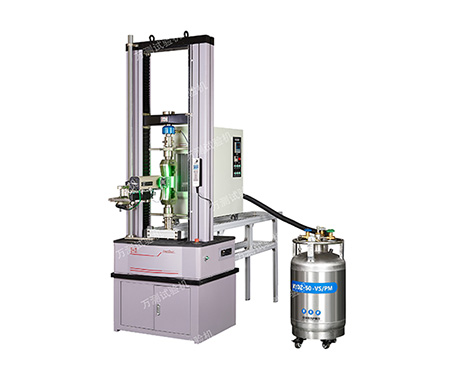

This 50kN electromechanical universal tensile testing machine is equipped with liquid nitrogen cooling chamber and video extensometer. it enables to test at low and high temperature. Video extensometer offers accurate measurement specimen deformation at chamber.

Model	EMC003A-1	EMC003A-2
Compatible with model	ETM Series, Type C	ETM Series, Type D
Temperature range	-70~+350℃
Wind circulation method	centrifugal blower
Temperature fluctuation	≤±1℃
Temperature accuracy	-70~200℃: ≤±2℃ 200~350℃: ≤±3.5℃
Temperature uniformity	-70~200℃: ≤±2℃ 200~350℃: ≤±3.5℃
Temperature reading accuracy	0.1℃
Heating time	3℃/min
Cooling time	2℃/min
Cooling method	Liquid nitrogen
Heat insulating material	Aluminum silicate wool
Inside dimension	D240×W200×H600 mm	D320×W300×H600 mm
Outside dimension	D900×W350×H760 mm	D950×W450×H760 mm
Weight	100kg	120kg
Heating power	1.6 kW	2.4 kW
Power supply	1-phase AC220V±10%, 50Hz	3-phase 5-line, AC380V±10%, 50Hz
Maximum specimen length after break	L=specimen clamp length between two grips +200
Working environment	Temperature: +5℃~+35℃ Humidity:≤85% Atmospheric pressure: 86~106KPa
