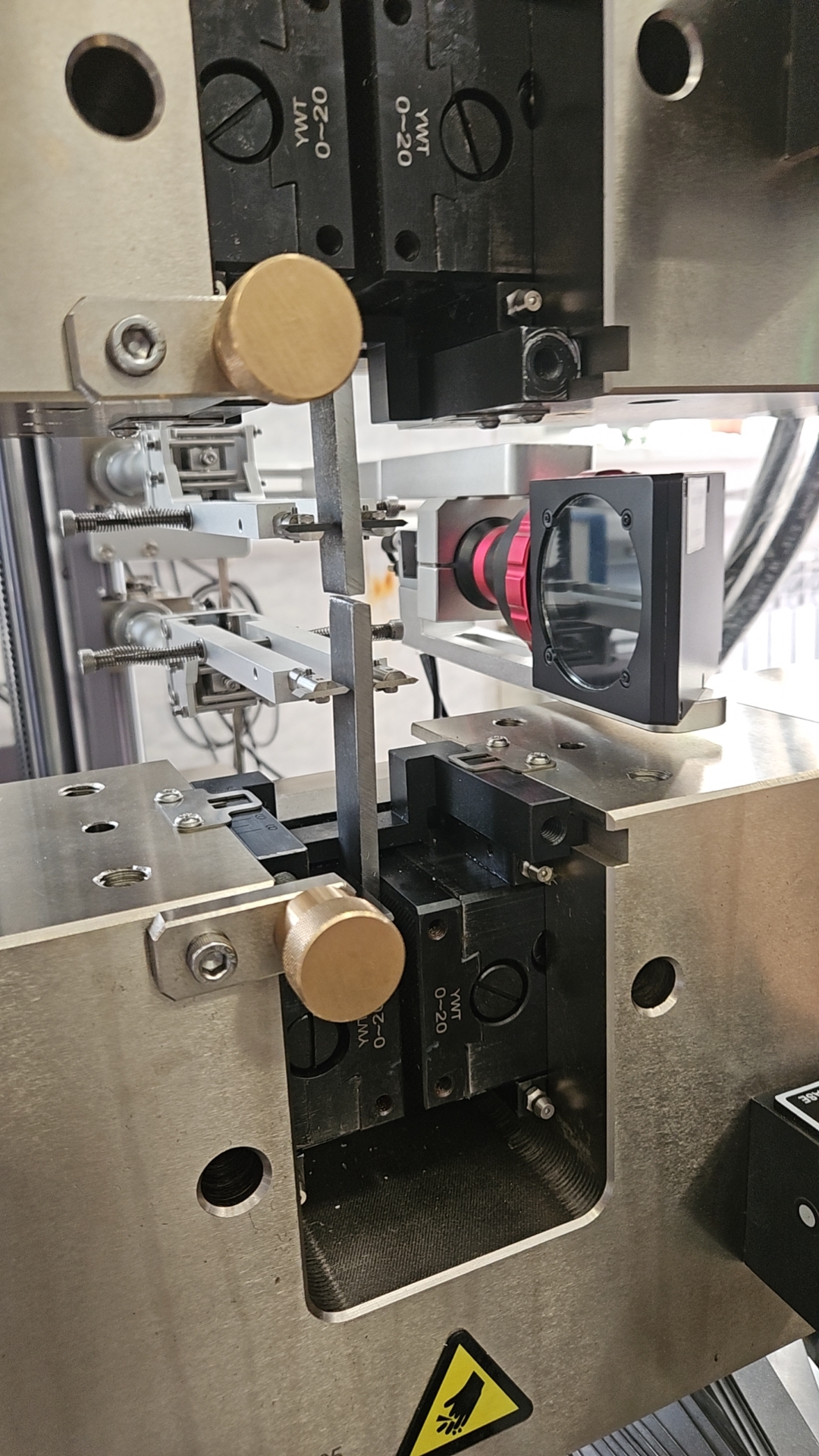

This high-resolution transverse strain measurement allows determination of r value in ISO 10113.

•    No moving mechanical parts are used, maintenance free

•    No specimen marking is required – AE202T uses advanced edge detection algorithm

•    The non-contact measurement principle eliminates contact forces in the transverse direction, allowing thin and sensitive specimens to be tested

•    Compared with traditional mechanical systems, the optical measuring system can be used for testing specimens using very small gage lengths (from 15 mm)

•    The transverse strain extensometer can be combined with AE202A automatic axial extensometer

•    The system is easy to set up and operate, while its high durability and low wear make it ideally suited to integration into testing facilities using robot systems

•    Both extensometers offer extremely high accuracy for their class and excellent reliability

•    The main area of application is close to production testing of sheet metals and strips
