Test type

·       Slip & Tensile Strength

·       Permanent Elongation & Tensile Strength

·       Static Tension Test

·       Static Compression Test

·       Cyclic Tension & Compression Test

Test standards

·       AC 133: 2010: 4.1

·       BS 8110: PART 1: 1997 3.12.8.16.2

·       BS4482

·       BS4483

·       BS4449

·       ASTM A 1034: 10.5, 10.7

·       Others……….

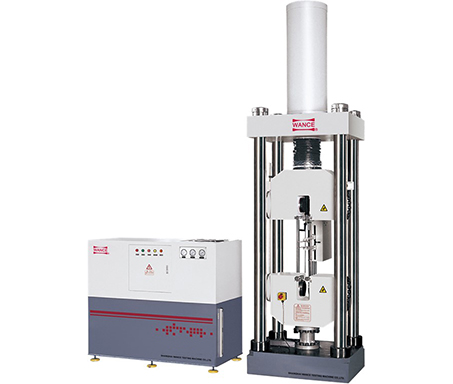

This series of servo-hydraulic universal testing machine is designed with up-mounted actuator structure. Bidirectional differential cylinder provides bidirectional control of tension and compression in one single space. Advanced side action hydraulic tensile grips provide high gripping performance for high strength and high hardness materials without any initial gripping force.

        Clearance-free structure and actuator up and down to adjust the test space offers easy operation and high efficiency. This machine is mainly used for tensile test of metallic materials. It provides closed loop control of constant force, constant displacement and constant extension, smoothly switching among them.

        Test results can be automatically calculated and be able to printed and exported.

Load Frame Configuration: 4 columns, servo-controlled hydraulic

Capacity:  600kN, 1000kN, 2000kN

Test Space:  Single zone

Typical specimens:  Fasteners, rebar, chain, welds, castings
