Mechanical Wedge Action Grip | 20kN | WXSA204G | high temperature-Tensile grips-WANCE: Material Testing Machines Manufacturer

Application	Tensile test of metallic and non-metallic materials
Maximum force	20 kN
Connection	Φ10 mm pin

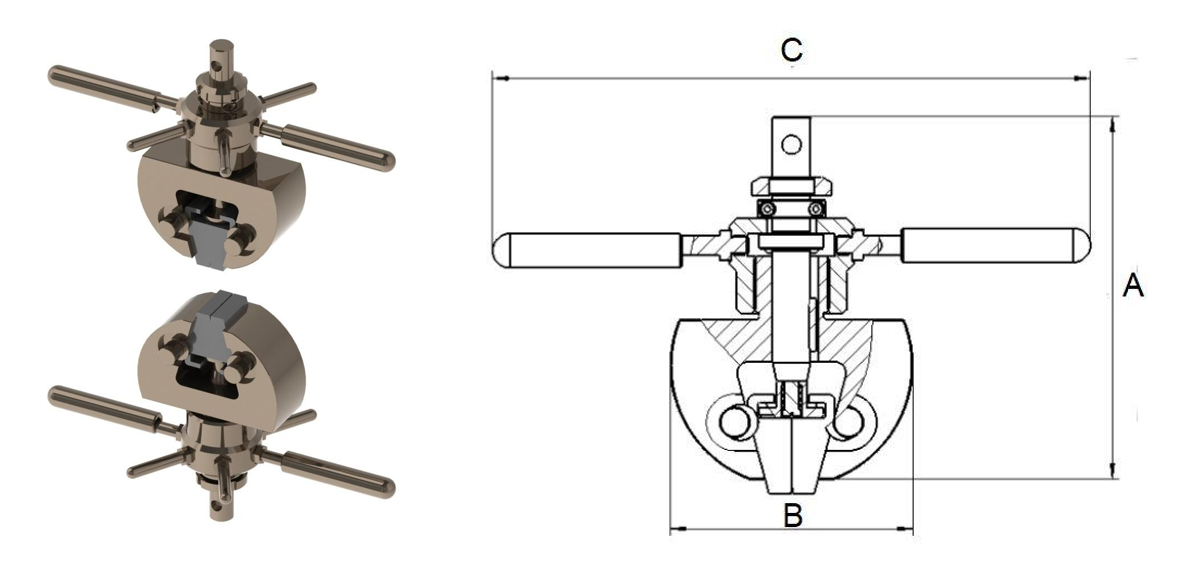

Height (A)
Upper grip	192 mm
Lower grip	192 mm
Grip body width (B)	128 mm
Total width (C)	316mm
Working temperature	-70℃ ~ 350℃
Clamping type	Wedge action
Upper grip weight	5 kg
Lower grip weight	5 kg
Grip Jaw
Jaw face	Serrated specimen hardness≦HRC24
Height	40mm
width	40mm
Flat jaw face	0~6mm, 6~12mm
Vee jaw face	Φ4~Φ9mm, Φ9~Φ14mm
