Application | Tensile test of metallic and non-metallic materials |
Maximum force | 30 kN |
Connection | Φ10 mm pin |

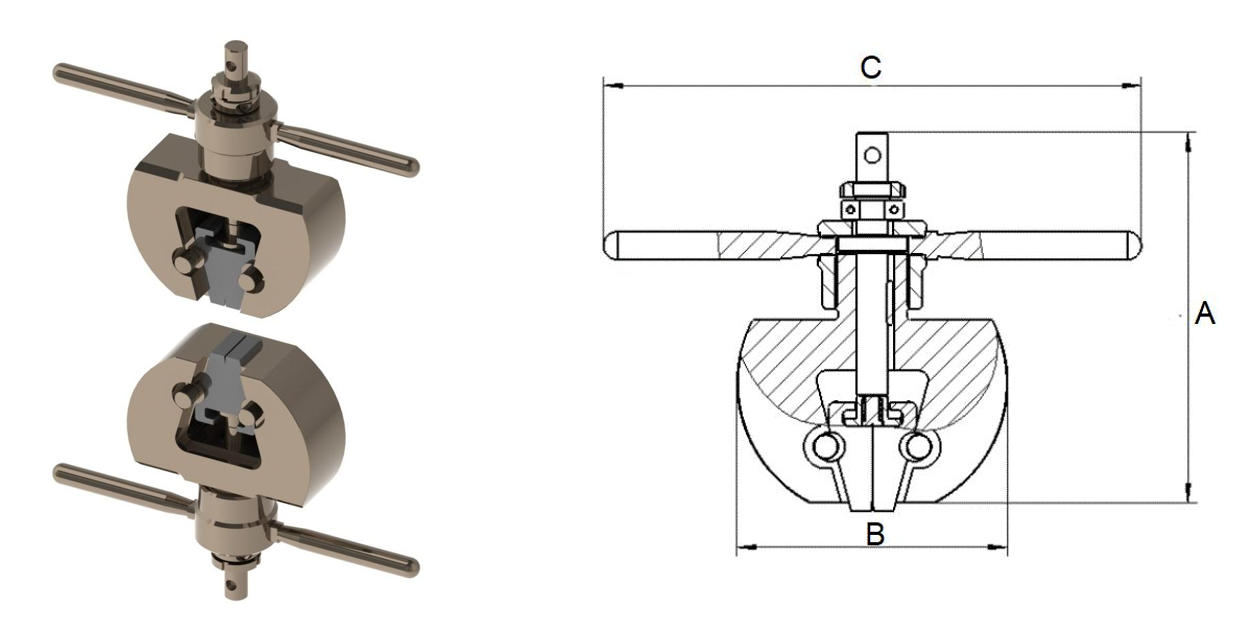

Height (A) | 240 mm |
Grip body width (B) | 174 mm |
Total width (C) | 346mm |
Working temperature | Ambient |
Clamping type | Wedge action |
Upper grip weight | 7.6 kg |
Lower grip weight | 7.6 kg |
Grip Jaw | |
Jaw face | Serrated, specimen hardness≦HRC24 |
Height | 40mm |
width | 40mm |
Flat jaw face | 0~7mm, 7~14mm, 14~21mm |
Vee jaw face | Φ4~Φ9mm, Φ9~Φ14mm, Φ14~Φ19mm |
