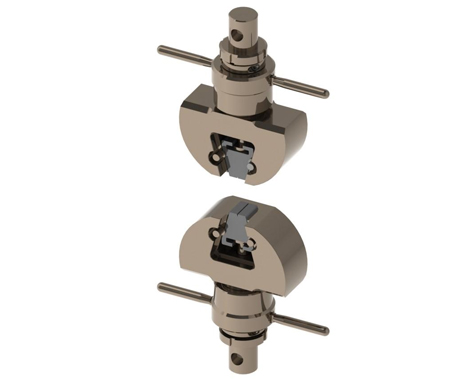

Application | Tensile test of metallic and non-metallic materials |
Maximum force | 300 kN |
Connection | Φ28 mm pin |

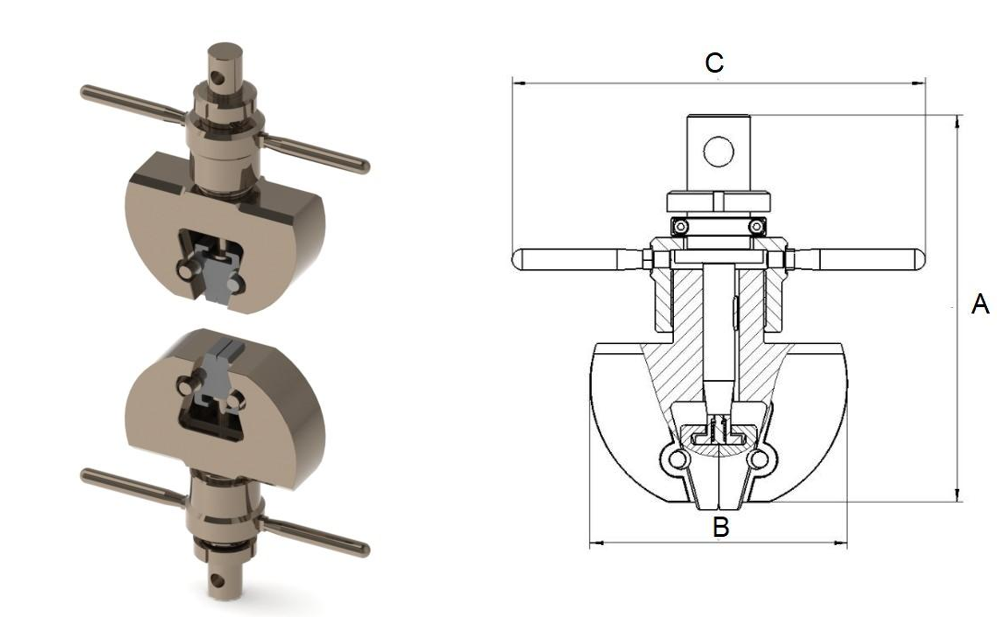

Height (A) | 367 mm |
Grip body width (B) | 244 mm |
Total width (C) | 392 mm |
Working temperature | Ambient |
Clamping type | Wedge action |
Upper grip weight | 36.5 kg |
Lower grip weight | 36.5 kg |
Grip Jaw | |
Jaw face | Serrated, specimen hardness≦HRC24 |
Height | 62 mm |
width | 50 mm |
Flat jaw face | 0~8mm, 8~16mm, 16~24mm, 24~32mm |
Vee jaw face | Φ4~Φ9mm, Φ9~Φ16mm, Φ16~Φ23mm, Φ23~Φ30mm |
