Application | Tensile test of metallic and non-metallic materials |
Maximum force | 20 kN |
Connection | Φ10 mm pin |

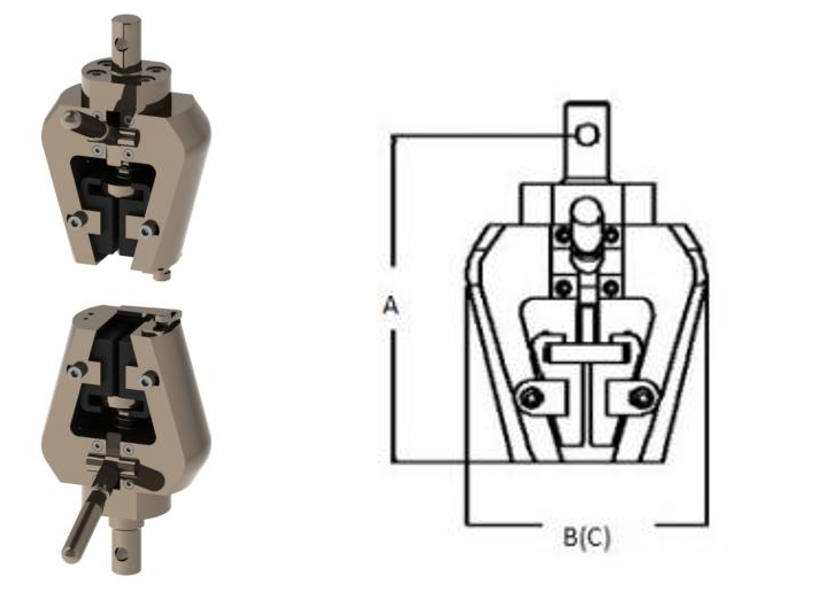

Height (A) | 162 mm |
Grip body width (B) | 111 mm |
Total width (C) | 111 mm |
Working temperature | Ambient |
Clamping type | Wedge action |
Upper grip weight | 4.3 kg |
Lower grip weight | 4.3 kg |
Grip Jaw | |
Jaw face | Serrated, specimen hardness≦HRC24 |
Height | 40 mm |
width | 40 mm |
Flat jaw face | 0~6 mm, 6~12 mm |
Vee jaw face | Φ4~Φ9 mm, Φ9~Φ14 mm |
