Mechanical Wedge Action Grip | 20kN | WXSB204G | high temperature-Tensile grips-WANCE: Material Testing Machines Manufacturer

Application	Tensile test of metallic and non-metallic materials
Maximum force	20 kN
Connection	Φ10 mm pin

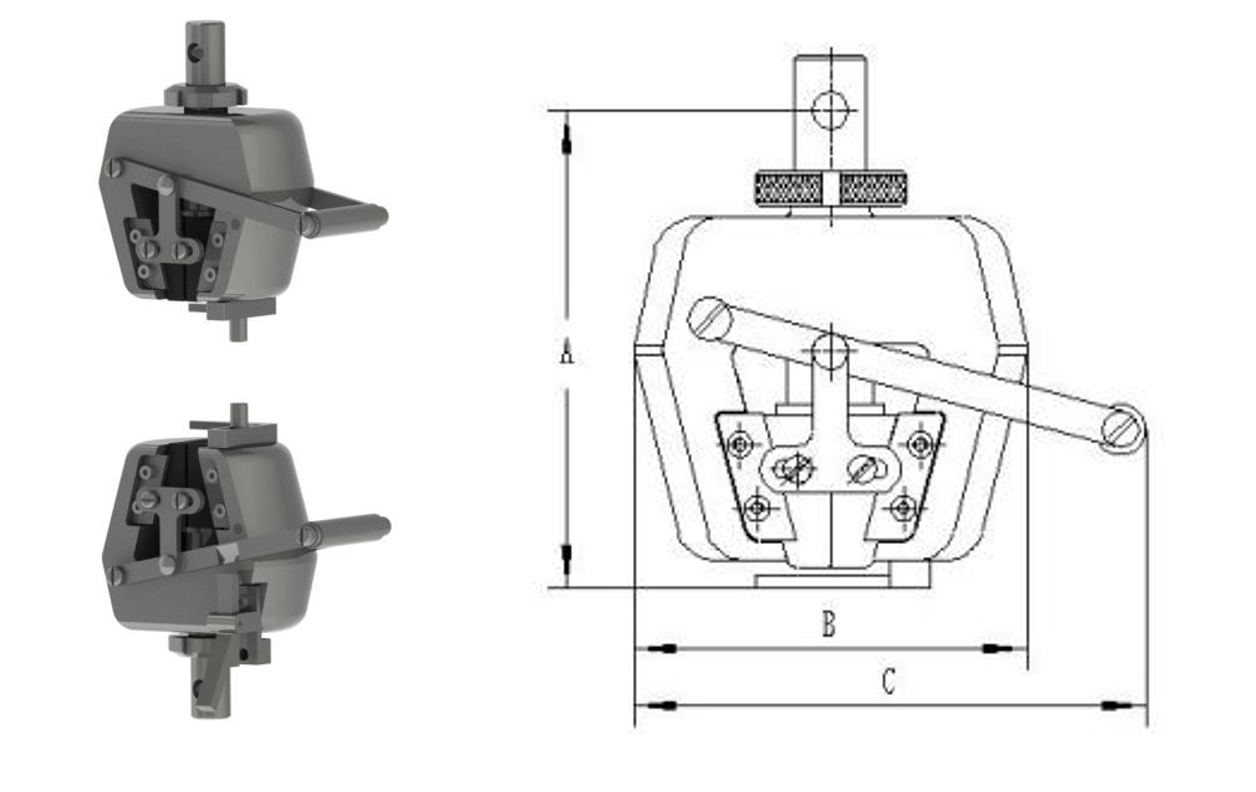

Height (A)
Upper grip	123.5 mm`
Lower grip	123.5 mm`
Grip body width (B)	108 mm
Total width (C)	140 mm
Working temperature	-70℃ ~ 350℃
Clamping type	Wedge action
Upper grip weight	3.76 kg
Lower grip weight	3.76 kg
Grip Jaw
Jaw face	Serrated specimen hardness≦HRC24
Height	40mm
width	40mm
Flat jaw face	0~6mm, 6~12mm
Vee jaw face	Φ4~Φ9mm, Φ9~Φ14mm
