Used with 100kN hydraulc grip grip-Environmental chamber-WANCE: Material Testing Machines Manufacturer

Select Composite testing subcategory

Description Applications Contact us

Model	EMC003AF-2	EMC003BF-2
Compatible grip	Used with 300kN hydraulic wedge grip
Cooling method	Liquid nitrogen cooling	Compressor cooling
Temperature range	-70~+350℃
Temperature fluctuation	≤±0.5℃
Heating rate	3℃/min
Cooling rate	2℃/min
Heat insulating material	Aluminum silicate wool
Inside dimension	300×320×750
Outside dimension	1000×450×910mm	1850×650×930mm
Maximum tensile space	400mm	400mm

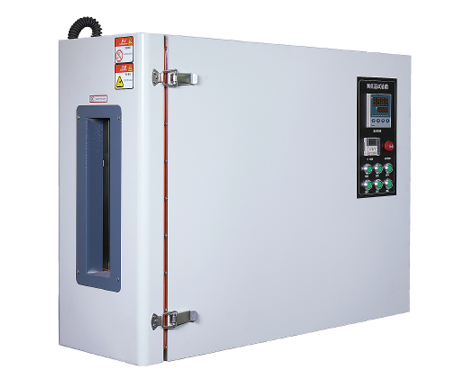

Liquid nitrogen cooling

Liquid nitrogen.png

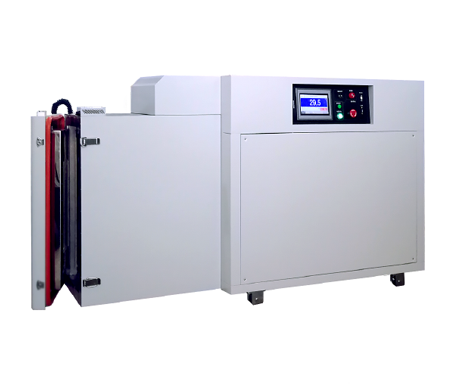

Compressor cooling

youtubideo
