Used with 300kN hydraulic wedge grip-Environmental chamber-WANCE: Material Testing Machines Manufacturer

Select Composite testing subcategory

Description Applications Contact us

Model	EMC003AF-3	EMC003BF-3
Compatible grip	Used with 300kN hydraulic wedge grip
Cooling method	Liquid nitrogen cooling	Compressor cooling
Temperature range	-70~+350℃
Temperature fluctuation	≤±0.5℃
Heating rate	3℃/min
Cooling rate	2℃/min
Heat insulating material	Aluminum silicate wool
Inside dimension	360×400×800mm
Outside dimension	1100×550×940mm	1950×750×960mm
Maximum tensile space	400mm	400mm

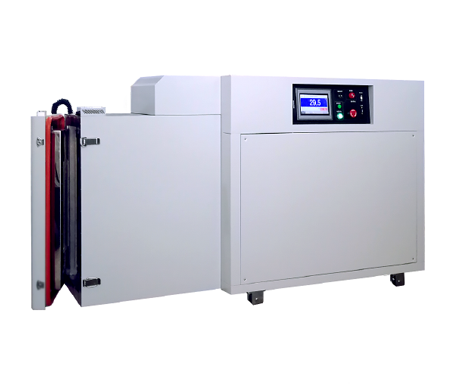

Compressor cooling

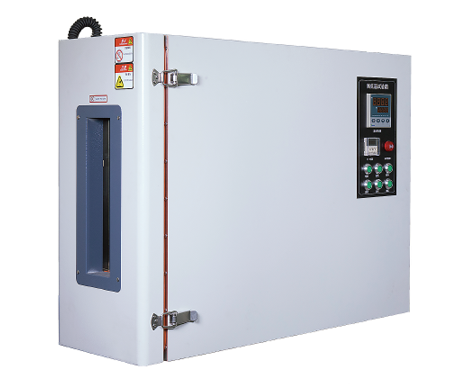

Liquid nitrogen cooling

Liquid nitrogen.png

youtubideo
