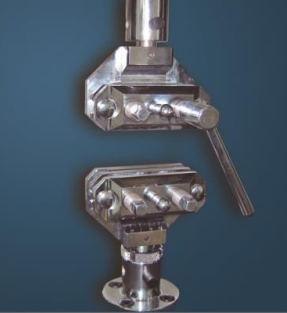

Application | Tensile test of non-woven fabrics, textile fibers and gridding cloth |
Compatible with | ETM Series Type A, B, C |
Maximum force | 5kN |
Connection | |
Upper grip | Φ10mm pin |
Lower grip | Φ10mm pin |
Height (A) | |
Upper grip | 95mm |
Lower grip | 105mm |
Grip body width (B) | 110mm |
Total width (C) | 110mm |
Working temperature | Ambient |
Clamping type | Screw side action |
Test space needed | 210mm |
Upper grip weight | 2.5kg |
Lower grip weight | 2.7kg |
Grip jaw | Rubber coated 0~110mm |
