Compression fixture | ZYX203

Application

Compression test of plastic foam

Test standards

ASTM D3578

Compatible with

ETM Series Type B, C, D

Maximum force

2kN

Connection


Upper grip

Φ10mm pin

Lower grip

Φ10mm pin

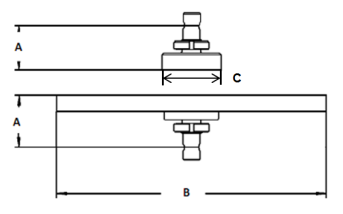

Height


Upper grip (A)

53mm

Lower grip (A)

63mm

        Width (B)

390x390mm

Indentor (C)

Ф203mm

Working temperature

Ambient

Test space needed

116mm

Upper grip weight

3kg

Lower grip weight

12.6kg
