Tensile grip | WDSA201A

Application

Tensile test of spandex filament

Compatible with

ETM Series Type A

Maximum force

20N

Connection


Upper grip

M6 screw

Lower grip

Φ10mm pin

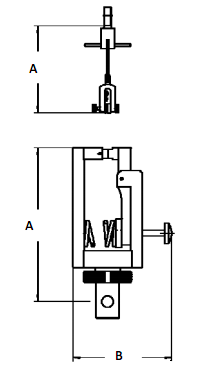

Height  (A)


Upper grip

80mm

Lower grip

135mm

Grip body width (B)

90mm

Working temperature

Ambient

Clamping type

Side action

Test space needed

280mm

Upper grip weight

0.05kg

Lower grip weight

1kg

Grip jaw


Jaw face

Flat jaw: 0~5mm
