Application3-point bending fixture for the Type II fracture toughness GIIC of end-notched compositesCompatible withTSESeries TypeC，DStandardASTM D7905Maximum force kN 20kNSpecimen typePolymer matrix composites,···
Application3-point bending fixture for compositesCompatible withTSESeries TypeB, CStandardGB/T 9341, ISO 14125ASTM D7264Maximum force kN 10Specimen typePolymer matrix composites, plasticsLoading nose mm R5Suppo···

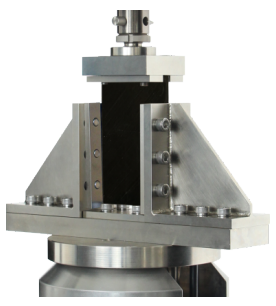

ApplicationEdgewise compression for sandwich materialCompatible withTSESeries Type B, CStandardASTM C364Maximum force3kNSpecimen typeSandwichSpecimen dimension ≥40 L × ≤75 W × ≤40 T mmWorking temperature0℃～40℃
ApplicationCompression fixture after impactCompatible withTSESeries Type B, CStandardASTM D7137Maximum force10kNSpecimen dimension150 L ×100 W × 4~6 T mmWorking temperature-70℃～350℃
ApplicationShort-beam shear test for compositesCompatible withTSESeries Type C, DStandardASTM D2344, ISO 14130, EN 2563, EN 2377, JC/T 773Maximum force kN 20Specimen typePolymer matrix compositeLoading nose mm ···
ApplicationV-Notched beam test for Shear Properties of Composite MaterialsCompatible withTSESeries Type CStandardASTM D5379, GB/T 30970Maximum force20kNSpecimen typeFiber reinforced composite materialSpecimen t···
ApplicationShear test for compositesCompatible withETM Series Type C, DExecutive standardASTM D3846, ASTM D695, EN 2850（Specimen B1 & B2）Maximum force20kNLoading methodEnd loadingSpecimen dimension79.5 L ×1···
ApplicationCompression test for compositesCompatible withETM Series Type C, DExecutive standardASTM D6641Maximum force50kNLoading methodCombined loadingSpecimen dimension140 L ×12 W ×1～4 T Working temperature-7···
ApplicationCompression test for composites according to different standardCompatible withETM Series Type DExecutive standardASTM D6641、ASTM D3410、ISO 14126（Method 1, Method 2）、GB/T5258 （Specimen 1）Maximum force···
ApplicationCompression test of metallic and non-metallic materialsCompatible withTSE Series Type CMaximum force20kNConnectionUpper gripΦ10mm pinLower gripSeated on the adapterHeightUpper grip A 65.5mmLower grip···
