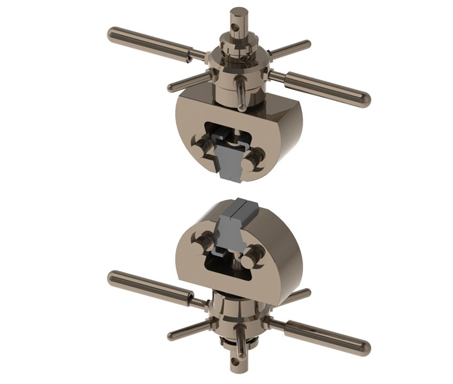

Mechanical Wedge Action Grip | 20kN | WXSB204G | high temperature

ApplicationTensile test of metallic and non-metallic materialsMaximum force20 kNConnectionΦ10 mm pinHeight A Upper grip123.5 mm`Lower grip123.5 mm`Grip body width B 108 mmTotal width C 140 mmWorking temperature···

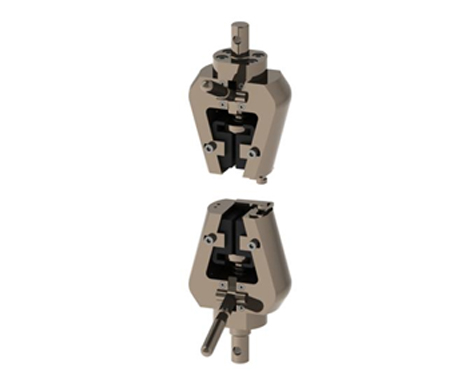

Manual Wedge Action Grip | 20kN | WXSB204A

ApplicationTensile test of metallic and non-metallic materialsMaximum force20 kNConnectionΦ10 mm pinHeight A 162 mmGrip body width B 111 mmTotal width C 111 mmWorking temperatureAmbientClamping typeWedge action···

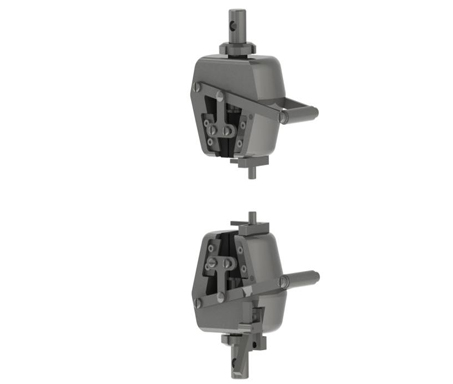

Manual Wedge Action Grip | 300kN | WXSA305A

ApplicationTensile test of metallic and non-metallic materialsMaximum force300 kNConnectionΦ28 mm pinHeight A 367 mmGrip body width B 244 mmTotal width C 392 mmWorking temperatureAmbientClamping typeWedge actio···

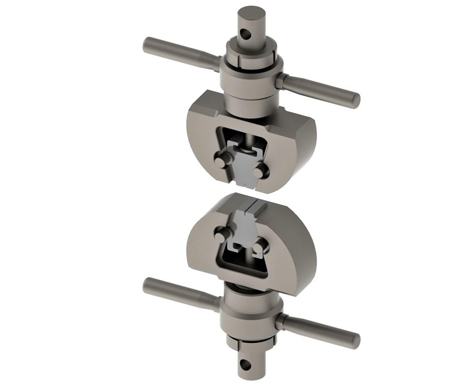

Manual Wedge Action Grip | 50kN | WXSA504A

ApplicationTensile test of metallic and non-metallic materialsMaximum force50 kNConnectionΦ10 mm pinHeight A 236 mmGrip body width B 178 mmTotal width C 337 mmWorking temperatureAmbientClamping typeWedge action···

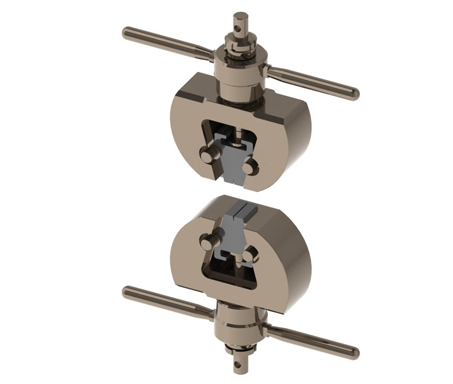

Manual Wedge Action Grip | 30kN | WXSA304A

ApplicationTensile test of metallic and non-metallic materialsMaximum force30 kNConnectionΦ10 mm pinHeight A 240 mmGrip body width B 174 mmTotal width C 346mmWorking temperatureAmbientClamping typeWedge actionU···

Mechanical Wedge Action Grip | 20kN | WXSA204G | high temperature

ApplicationTensile test of metallic and non-metallic materialsMaximum force20 kNConnectionΦ10 mm pinHeight A Upper grip192 mmLower grip192 mmGrip body width B 128 mmTotal width C 316mmWorking temperature-70℃ ~ ···
